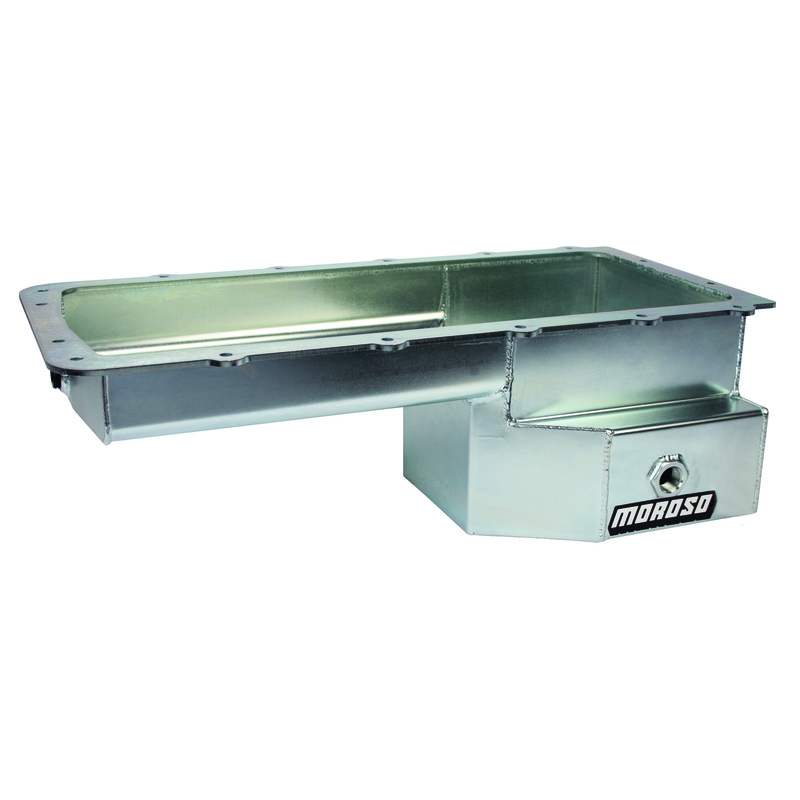

Moroso Oil Pan 20571; Road Race Wet Sump 9.00 Quarts Clear Zinc for 1994-Up Ford Mustang 5.0L Coyote

Price:	$508.99

Brand:

Moroso

SKU:

MOR20571

UPC:

084663205712

Box Dimensions:

24.1 × 15.5 × 8.9 in

Box Weight:

20 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Series:

Road Race

Year:

1994-Up

Make:

Ford

Model:

Mustang

Engine:

5.0L Coyote

Material:

Fabricated Steel

Capacity:

9.00 Quarts

Finish:

Clear Zinc

Pan Style:

Wet Sump

Dip Stick Location:

Driver's Side

Depth:

6.625 in.

Kick Out:

Double Kickout

Sump Location:

Rear Sump

Baffled:

Yes

Includes Pickup:

Standard Pickup Part Number:

MOR24578

Includes Windage Tray:

Includes Crank Scraper:

Includes Gasket:

Includes Hardware:

Notes:

Fully Fabbed Road Race Baffling, 1/2 in. NPT fittings for oil temp. sender and supercharger drainback, 20 mm fitting for the factory oil level sensor

Quantity:

Sold As Each

Steel, Wet Sump, 6-5/8" Deep
Engine Application: Ford 5.0 Modular "Coyote" Engines
Fits: Mustang '11-Up & other Ford Rear Sump conversions with Ford "Coyote" or "Voodoo" Engines, (check measurements)
Pan has a thick steel or billet aluminum rail with a 2-3/8" deep front section and a 6-5/8" deep by 9" long rear sump
Designed to be used with the 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick

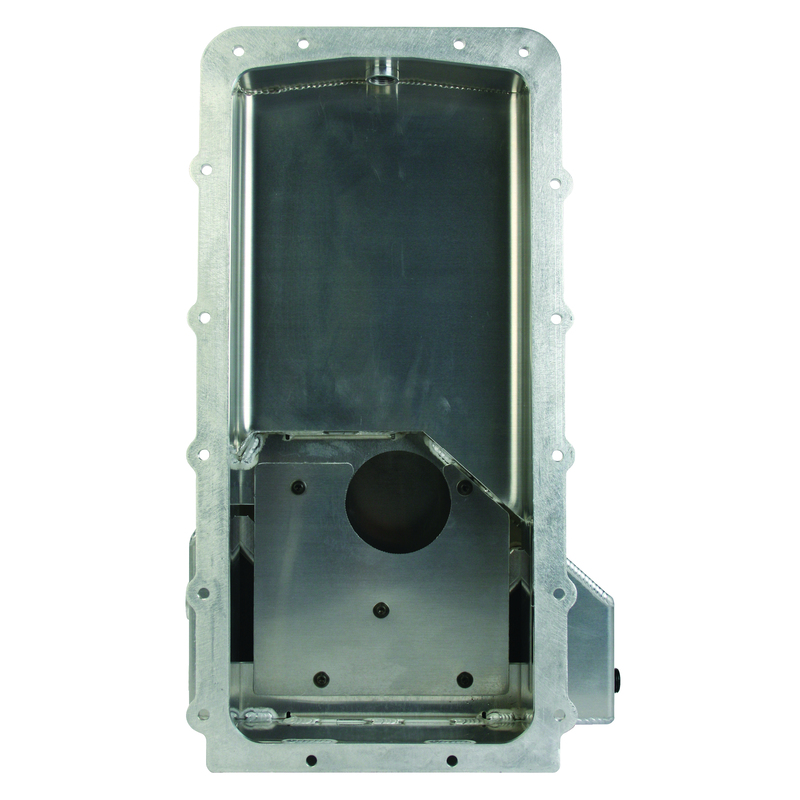

Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
1/2" NPT fitting for supercharger drain back
1/2" NPT fitting for oil temperature sender
20mm fitting for the factory oil level sensor*
On Gen 1 & 2 Coyote//Voodoo engines use factory oil pump pickup and on Gen 3 "Coyote/Voodoo" engines use Part No. 24578
*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.

Oil Pan, Ford 5.0 COYOTE, Mustang, 94-Up and other rear sump Fords with Ford "Coyote" Engines, Fully Fabbed Steel, Road Race Baffling, 1/2" NPT fittings for oil temp. sender and supercharger drainback, 20 mm fitting for the factory oil level sensor
