ICT Billet Clutch Bellhousing 551001-GEN1; Bellhousing Adapter for GM/Nissan LS Gen 1 CS001-009, CD00A

LS Engine to Nissan Gen 1 CD009 Transmission Bellhousing Adapter Plate - Clutch Disc Kit

Fits: GM LS Series Engines, Gen 1 CD009 Transmission

• Allows the ability to install the Nissan CD001 through CD009, and CD00A, Transmission onto a GM LS engine with minimal modification
• Uses all standard F-Body LS T56 Flywheel - Pressure Plate - Bellhousing components
• Compatible with Nissan 350Z/G35 6-speed Transmissions from 2003-2006
• Allows transmission and clutch servicing without removing engine in most applications

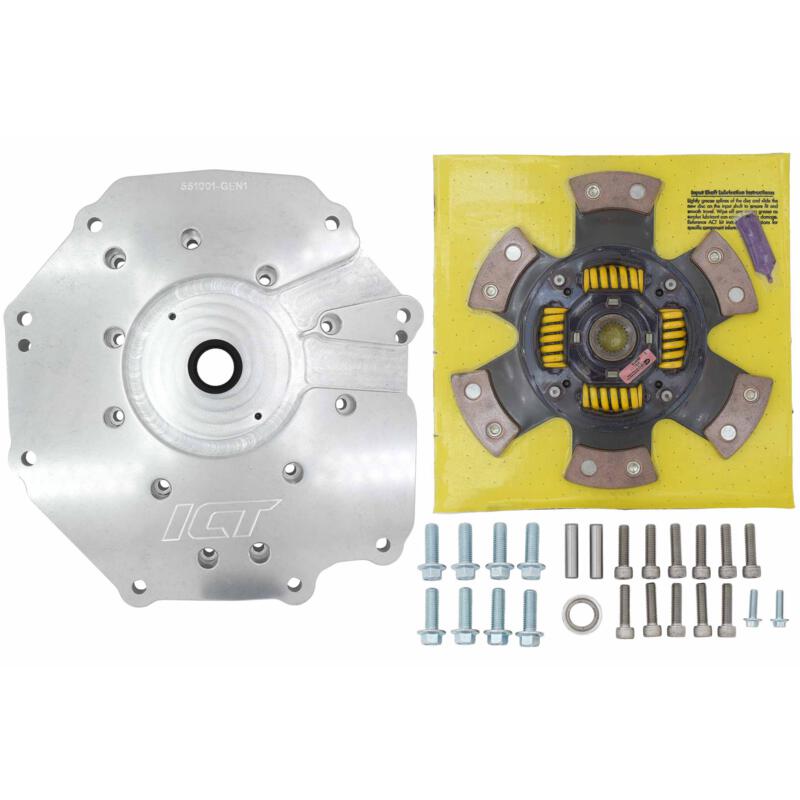

• Package includes: Bellhousing Adapter Plate, Pilot Bushing, Clutch Disk, Alignment Tool and Mounting Hardware
• Made from aerospace-grade billet aluminum
• Made in America
• NOT compatible with Generation 2 JK Transmissions from 2007 and later 350Z/G35 applications - See 551001-GEN2 Adapter Kit
• To verify Transmission Generation, Measure input shaft bearing OUTSIDE DIAMETER
  • Generation 1 = 3.937 or 100mm  &  Generation 2 = 3.543 or 90mm
• Modification to transmission entails cutting/removing OEM Bellhousing and OEM front bearing cover from transmission to allow adapter plate installation
• Adapter plate will take place of front bearing cover on transmission
• Standard T56 Bellhousing will bolt to adapter plate
• Installer must verify bellhousing/adapter plate alignment is within .005" during insatllation to prevent bearing side-loading -  OFFSET DOWELS MAY BE NECESSARY TO ENSURE PROPER ALIGNMENT
